Dynamic imaging of Ostwald ripening in copper oxide nanoparticles by atomic resolution transmission Electron microscope

Abstract

Structural evolution of copper oxide nanoparticles is examined, especially with respect to Ostwald ripening under electron beam irradiation. Dissolution of the smaller particles into the larger one was clearly observed at the atomic scale using advanced transmission electron microscope.

Description

Ostwald ripening is a well-known crystal growth phenomenon, arising from unbalanced atomic diffusion from smaller nanoparticles with higher surface energy to bigger one (Voorhees 1985; Kuo et al. 2013; Ouyang et al. 2013). Transmission electron microscopy (TEM) is adequate to demonstrate the phenomenon associated with atomic diffusion and migration using state-of-the-art techniques (Bell et al. 2010). Herein, we show in-situ structural evolution in copper oxide nanoparticles (CuxO NPs), especially in terms of crystallization and Ostwald ripening under electron beam irradiation in TEM. The amorphous copper oxide, widespread residues on CVD graphene surfaces (Lupina et al. 2015), shows crystallization from non-crystalline to hexagonal-like lattice structures with random orientation during electron-beam irradiation (Fig. 1 a). When the two crystallized blue and green CuxO NPs become close to each other, Ostwald ripening occurs by atomic diffusion from the blue CuxO NP to the green one. In particular, it appears that the smaller blue CuxO NP with 2 nm in diameter rotated around 23 degree to diffuse into the larger green one just after 0.2 s acquisition time (Fig. 1b, c). On the other hand, the green CuxO NP just rotated a fraction of degree. Misorientation in the growing CuxO NP involves double reflections and blur in digital diffractograms (yellow insets of Fig. 1 c and d) and elongation on the outermost lattices (Fig. 1 d). After prolonged e-beam irradiation of approximately 10 s, it appears that the CuxO NP was transformed into the well-crystallized structure of hexagonal lattices in absence of defects like twin boundaries (Fig. 1 e).

Fig. 1
figure1

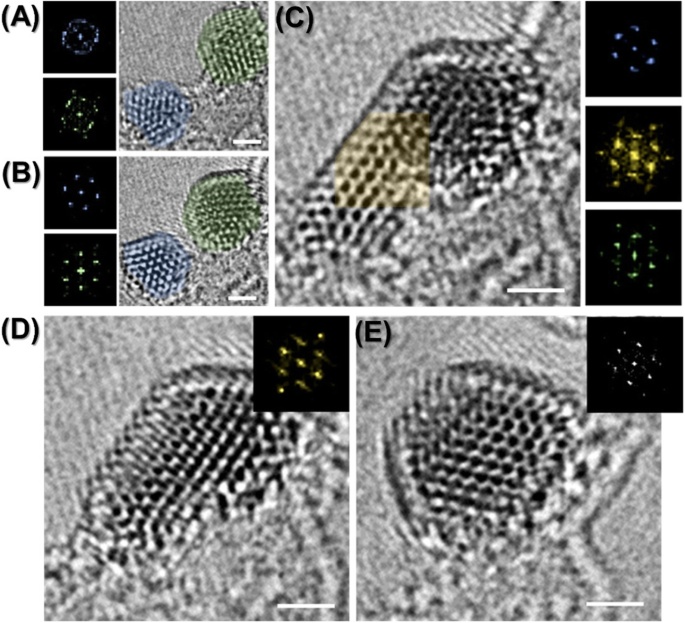

Atomic resolution TEM images with respect to Ostwald ripening in CuxO NPs on graphene. All scale bars are 1 nm. a, b Crystallization in CuxO NPs from the amorphous phase during electron beam irradiation. The gap of acquisition time between a to b is about 6 s. b-d Ostwald ripening process between two CuxO NPs taken by 0.2 s time-series acquisition. e Crystallized CuxO NP with hexagonal lattice structures 10 s after taking d

This image provides direct evidence of Ostwald ripening regarding the phenomenon that the smaller particles have higher solubility owing to higher surface energy by showing atomic dissolution and rotation of CuxO NPs under atomic scale investigation.

Availability of data and materials

Not applicable. “Please contact author for data requests.”

References

  1. D.C. Bell, C.J. Russo, G. Benner, sub-angstrom low-voltage performance of a monochromated, aberration-corrected transmission electron microscope. Microsc. Microanal. 16, 386 (2010). https://doi.org/10.1017/S1431927610093670

    CAS  Article  Google Scholar

  2. C.L. Kuo, K.C. Hwang, Does morphology of a metal nanoparticle play a role in Ostwald ripening processes? Chem. Mater. 25, 365 (2013). https://doi.org/10.1021/cm3031279

    CAS  Article  Google Scholar

  3. G. Lupina, J. Kitzmann, I. Costina, M. Lukosius, C. Wenger, A. Wolff, S. Vaziri, M. Östling, I. Pasternak, A. Krajewska, W. Strupinski, S. Kataria, A. Gahoi, M.C. Lemme, G. Ruhl, G. Zoth, O. Luxenhofer, W. Mehr, Residual metallic contamination of transferred chemical vapor deposited Graphene. ACS Nano 9(4776) (2015). https://doi.org/10.1021/acsnano.5b01261

    CAS  Article  Google Scholar

  4. R. Ouyang, J.-X. Liu, W.-X. Li, Atomistic theory of Ostwald ripening and disintegration of supported metal particles under reaction conditions. J. Am. Chem. Soc. 135(1760) (2013). https://doi.org/10.1021/ja3087054

    CAS  Article  Google Scholar

  5. P.W. Voorhees, The theory of Ostwald ripening. J. Stat. Phys. 38(231) (1985). https://doi.org/10.1007/BF01017860

    Article  Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

This work was supported by the Institute for Basic Science (IBS-R019-D1).

Author information

Affiliations

Authors

Contributions

NYK performed the experiment and wrote the manuscript. The author read and approved the final manuscript.
